Overview：
EQ-SW4024MGH Brochure Core Content List Core Conclusion: This product is a 10G Managed Fiber Ethernet Switch supporting Layer 3 routing. It integrates multi-port access, flexible stacking, and comprehensive management functions, suitable for small and medium-sized enterprises (SMEs) as well as monitoring/conferencing scenarios.
Featured Highlights:
1. 10G Managed Switch.
2. Support 4×SFP+ + 24×GbE.
3. Support total PoE power：450W.
4. Managed Switch support VLAN.
5. Support Surge Protection Level：6KV
6. Support POE power supply.
- Model: EQ-SW4024MGH
- Port Configuration: 24 10/100/1000Base-T(X) RJ45 Ports + 4 1G/10G SFP+ Slots
- Core Attributes: Layer 3 Managed, Stacking-supported, Multi-scenario Adaptable
- Comprehensive Layer 3 Routing: Supports Static Routing, RIP, OSPF, VRRP, etc., to meet the needs of complex network architectures.
- Stacking for Simplified Management: Up to 8 devices can be stacked, enabling configuration and monitoring via a single IP address.
- Flexible Management Methods: Supports multiple methods including WEB/SSH/Telnet/SNMP/CLI, with Micro-USB Console compatible with laptops.
- Comprehensive Security Protection: Supports ACL, IP-MAC-Port Binding, DoS Defense, 802.1x Authentication, etc.
- Switching Capacity: 128Gbps
- Packet Forwarding Rate: 95.3Mpps

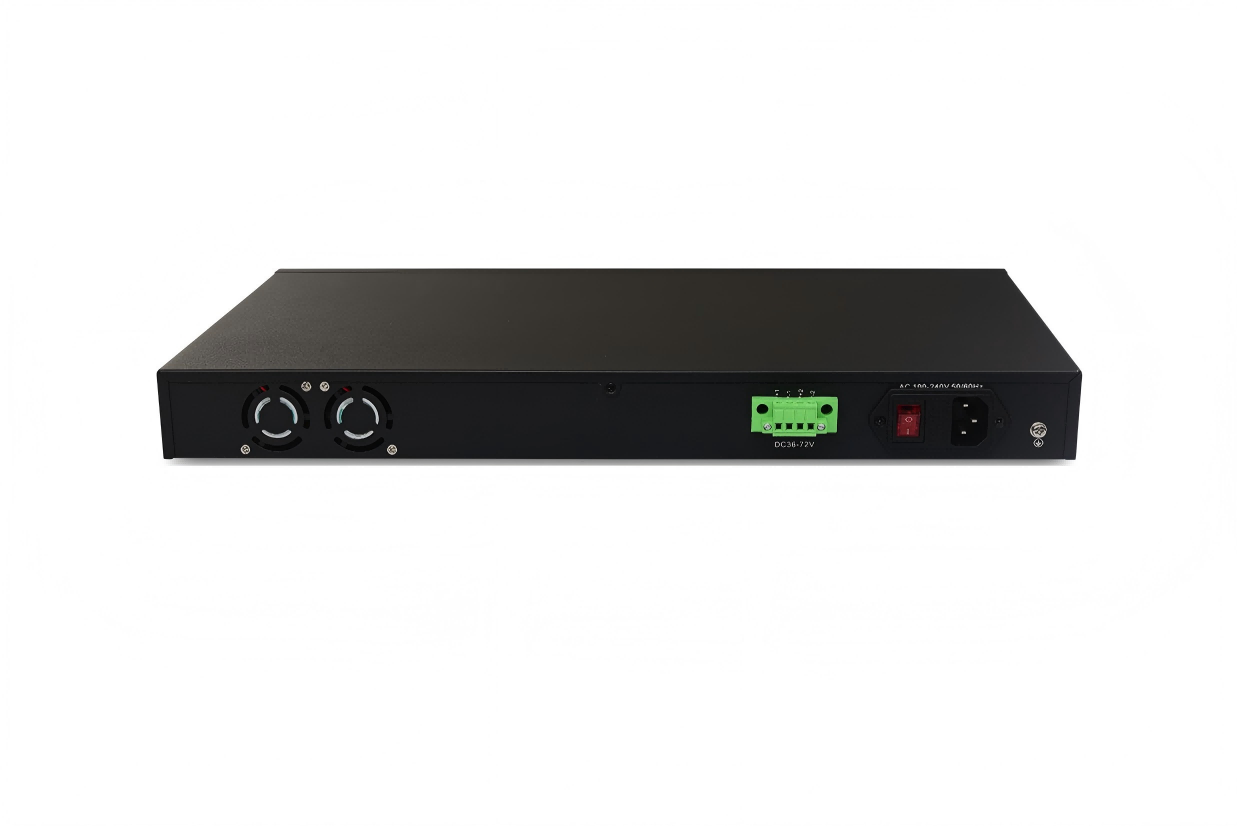

- Power Supply Specification: AC 100-240V (50/60Hz) or DC 36-72V
- Maximum Power Consumption: 27W (220V/50Hz)
- Dimensions: 440×250×44mm (W×D×H)
- Operating Temperature: 0°C~50°C
1. Layer 2 Features
- Supports STP/RSTP/MSTP Spanning Tree Protocols for loop elimination.
- 4K VLAN Groups, supporting QinQ and Voice VLAN.
- Link Aggregation (LACP): Up to 64 groups (8 ports per group).
2. Layer 3 Features
- Supports IPv4/IPv6 Dual Stack, with full coverage of dynamic routing protocols.
- Supports PIM-SM/DM multicast routing, suitable for high-definition video monitoring and conference scenarios.
3. QoS and Optimization
- 802.1P/DSCP Priority, with 8 queue scheduling options.
- Port Bandwidth Rate Limiting and Storm Suppression to ensure network stability.
4. Management and Maintenance
- Supports Configuration Import/Export and Dual Firmware Backup.
- Hardware Status Monitoring (CPU Temperature, Port Status Indicators).
