Product Details

System Capacity

20 users, 10 concurrent, 128Mb Onboard RAM, 512Mb Onboard Flash.

Fax

T.30T.38 Fax to Email

PBX Features

Call Transfer, Call Forwarding, Call Waiting, Call Back, Call Routing, Caller ID, Do Not Disturb, DISA, Conferencing, Queuing, Multicast/One Touch Intercom, Voice Messaging, Voice Messaging to Email, Intelligent Voice Response (IVR), Call Logging, Blacklisting, Music-on-Hold, Customizable Work Hours, Auto Deployment, Call Recording, Ringing Groups.

Network Features

Network protocols: UDP,TCP,TFTP,HTTP,SSH,RTP,SRTP,ARP,NTP

NAT conversion: static NAT,STUNHTTP / HTTPS web server

MD5 Digest Authentication, Static Routing, OpenVPN, Virtual LAN (VLAN), QoS/ToS, Dynamic Domain Names (DDNS), Firewalls

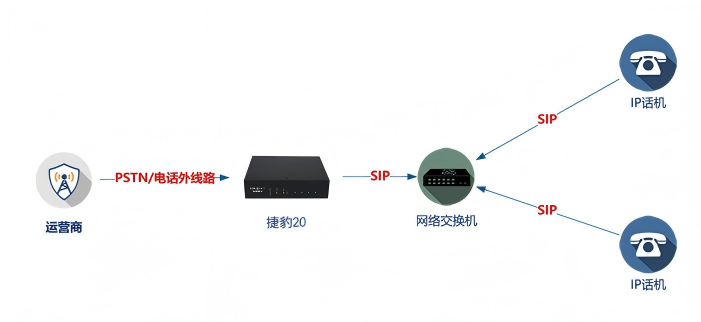

Network Topology Diagram

Voice Processing

Protocol: SIP(RFC3261),IAX2

Transport Protocol: UDP,TCP,TLS,SRTP

DTMF Mode: RFC2833,SIP INFO,In-band

Voice Coding: G.711 (alaw/ulaw),G.722,G.726,G.726aal2,G.729A,GSM. ADPCM,Speex,ilbc,H263,H264

Echo elimination:ITU-T G.168 LEC.

Interface

Can optional support 2 FXO ports（Optional）.

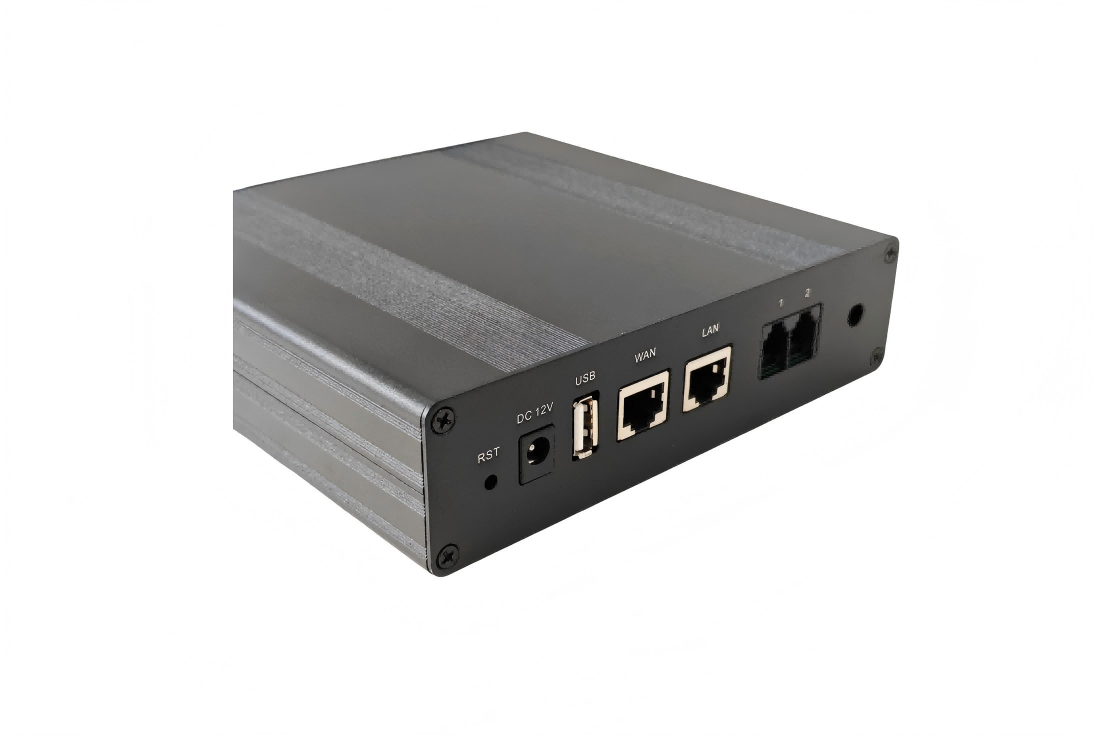

Single/Dual 10/100Mbps RJ45 Ethernet ports

Peripheral Ports: USB2 FXO ports,or 2 FXS ports,or 1 GSM ports

Peripheral Ports: USB

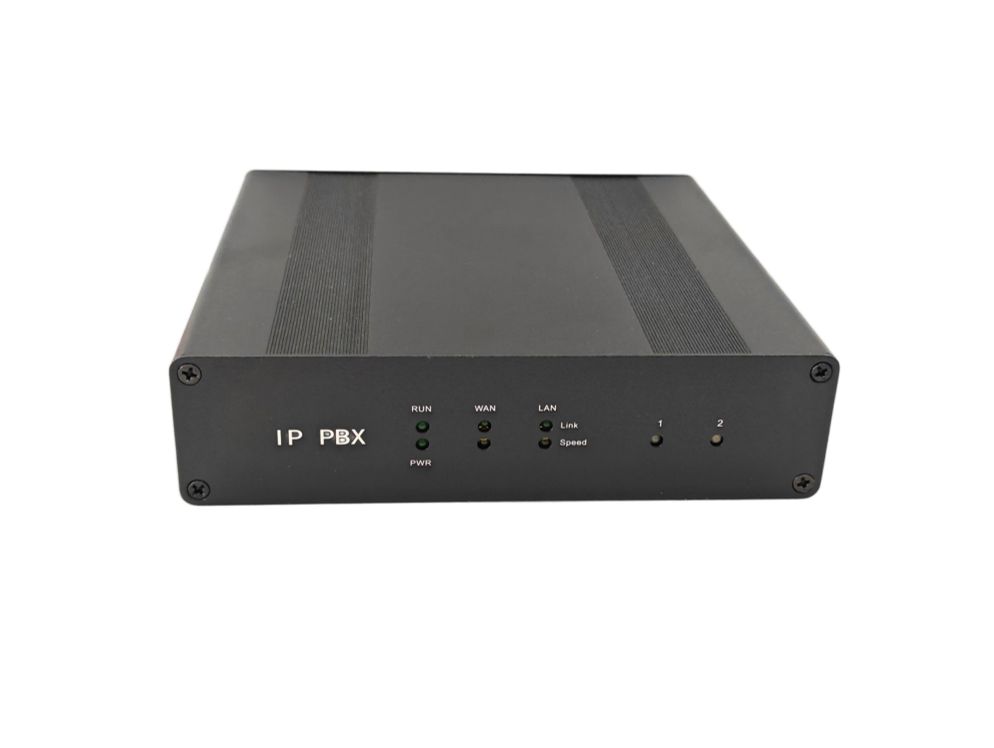

LED indicators:POWER,Run,Network,PSTN

Reset button

Maintenance and Upgrade

Web-based Configuration/Configuration Backup/Restore/Upgrade Firmware via Upload/TFTP/Modify Web Login Password/Blacklist/Network Packet Capture/IVR Customization/Text to Wav File/Call Record(CDR)/System Log/SMTP/Restore Factory, Reboot/Ping
