Core Conclusion：

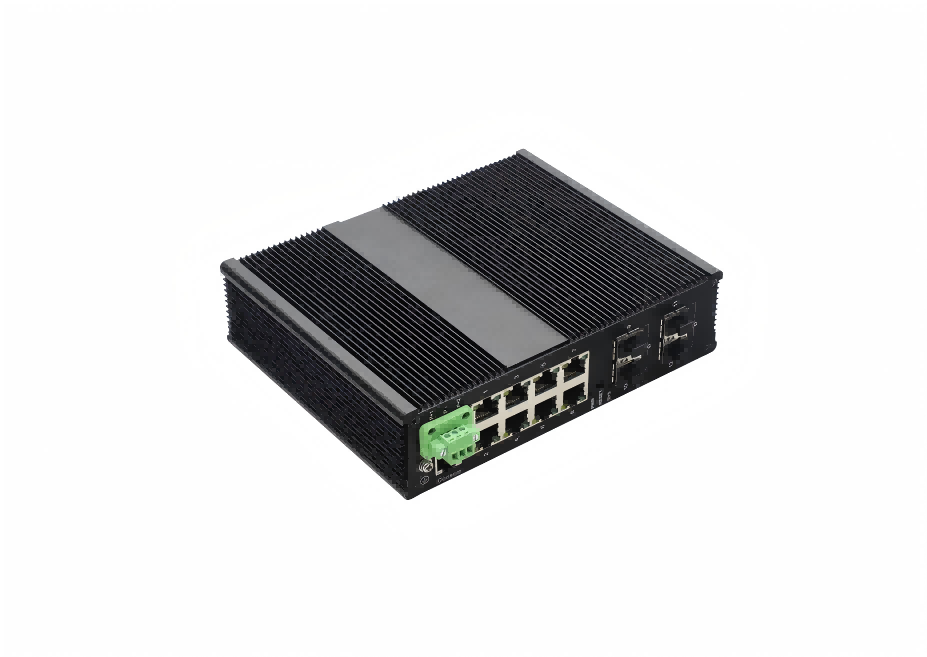

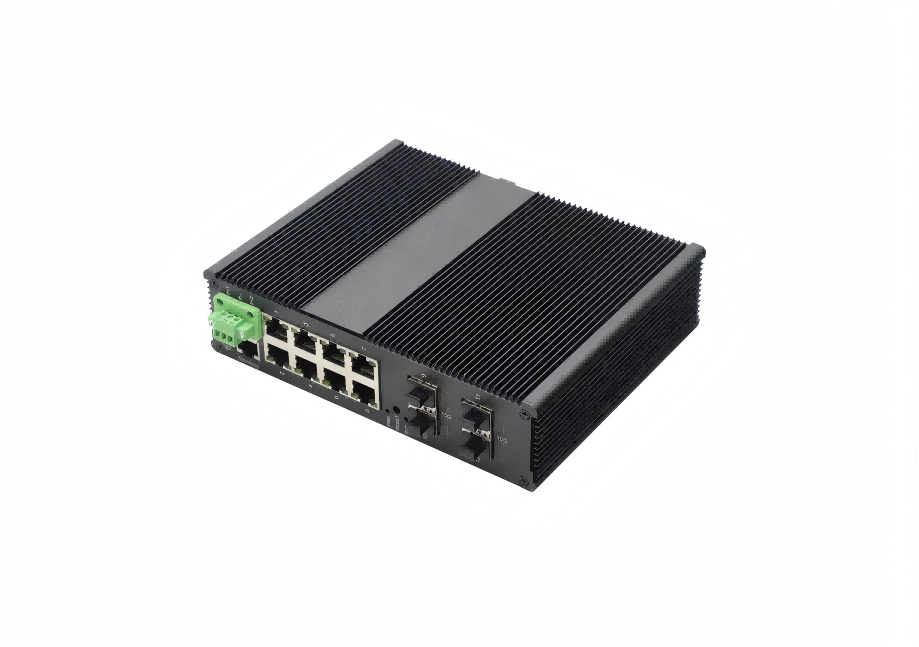

This product is an industrial-grade managed Ethernet switch with 10G uplink capability, featuring 8 Gigabit electrical ports + 4 1G/10G SFP+ slots, industrial-grade reliability, and rapid ring network recovery. It is suitable for harsh industrial scenarios such as industrial control systems, video surveillance, and intelligent manufacturing that require high-speed uplink and stable operation.
Featured Highlights:
1. 10G Industrial Managed Switch.
2. Support 8×GbE + 4×10G SFP+ + 1Console, 12-port.
3. Support Aluminum alloy housing and IP40 protection class.
4. Supports multiple management modes including CLlSNMP (v1/v2c), and WEB.
5. Support network redundancy withfault self-healing time <20ms
6. Supports dual redundant powersupply(PoE optional) and diverse topologies
7. Support POE power supply.
- Model: EQ-MIWS4G08H
- Port Configuration: 8 10/100/1000Base-T(X) Ports + 4 1G/10G SFP+ Slots + 1 RJ45 Console Port
- Core Attributes: Industrial-grade Managed, 10G Uplink Supported, Redundant Power Supply, Wide Temperature Adaptable, Harsh Environment Resistant
- Industrial-grade Stability: Operating temperature of -40℃~+85℃, IP40 aluminum alloy housing, fanless natural heat dissipation, resistant to vibration and electromagnetic interference.
- High-speed Uplink: 4 1G/10G SFP+ slots enable flexible high-speed fiber uplink, adapting to large-bandwidth data transmission needs.
- Rapid Ring Network Recovery: Supports ERPS protocol, network fault self-healing time <20ms, ensuring high network availability.
- Reliable Power Supply: DC10-55V dual redundant power input with reverse polarity protection, avoiding downtime due to power issues.
- Flexible Management: Supports WEB/CLI/Telnet/SNMP management, facilitating efficient device configuration and monitoring.
- Switching Capacity: 160Gbps
- Packet Forwarding Rate: 95.23Mpps
- Power Supply: DC10-55V (dual redundant), reverse polarity protection
- Power Consumption: Non-PoE full load <10W; PoE full load <132W (optional PoE)
- Dimensions (L×W×H): 181×146×47mm
- Operating Temperature: -40℃~+85℃
- Protection Level: IP40 (aluminum alloy housing)
- Installation: DIN-Rail Mount
- MTBF: 100,000 hours
1. Layer 2 Features
- Supports 4K VLANs (port-based VLAN, IEEE 802.1Q VLAN, QinQ) for flexible service isolation.
- Compatible with STP/RSTP/MSTP spanning tree protocols and ERPS ring network protocol to eliminate loops.
- Up to 12 link aggregation groups, enhancing link bandwidth and redundancy.
2. Industrial-grade & Transmission Features
- Wide temperature adaptation (-40℃~+85℃) and strict EMC protection, complying with multiple IEC 61000-4 standards.
- Supports 10Kbytes Jumbo Frame and auto-adaptive cross-connect/direct cables.
- Transmission distance: Up to 100m for electrical ports; 550m~100KM for fiber (depending on SFP+ module).
3. Security & QoS
- Rich QoS mechanisms: Priority mapping, SP/WRR queue scheduling, and port/flow-based rate limiting.
- Supports 500 ACLs (IP standard/extended ACL, MAC extended ACL) and storm suppression.
- Optional PoE function (IEEE 802.3af/at), meeting power needs of industrial terminal devices.
4. Management and Maintenance
- Diversified management methods: WEB management, CLI (Console/Telnet), SNMPv1/v2c.
- Convenient maintenance: Supports firmware upgrade, system log, SFP module DDM monitoring, and configuration management.
