Core Conclusion：
This product is an industrial-grade managed Ethernet switch, featuring 8 Gigabit electrical ports + 8 SFP optical ports, wide operating temperature range, redundant power supply, and rapid ring network recovery. It is suitable for harsh industrial scenarios such as automotive PIS, video surveillance, train control systems, and other industrial applications requiring high reliability.
Featured Highlights:
1. 1G Industrial Managed Switch.
2. Support 8×SFP + 8×GbE, 16-port.
3. Support Aluminum alloy housing and IP40 protection class.
4. Supports multiple management modes including CLlSNMP (v1/v2c), and WEB.
5. Support network redundancy withfault self-healing time <20ms
6. Supports dual redundant powersupply(PoE optional) and diverse topologies
7. Support POE power supply.
- Model: EQ-MIGS808H
- Port Configuration: 8 10/100/1000Base-T(X) Ethernet Ports + 8 1000Base-X SFP Slots
- Core Attributes: Industrial-grade Managed, Dual-port Configuration (Electrical + Optical), Redundant Power Supply, Wide Temperature Adaptable, Harsh Environment Resistant
- Industrial-grade Reliability: Operating temperature of -40℃~+85℃, IP40 aluminum alloy housing, resistant to vibration, shock, and electromagnetic interference (EMI).
- Rapid Ring Network Recovery: Supports ERPS (G.8032) protocol, network fault recovery time <20ms, ensuring high network availability.
- Redundant Power Supply: DC10-58V input with reverse polarity protection, enhancing system stability in critical industrial environments.
- Flexible Management: Supports WEB/CLI/Telnet/SNMP management, facilitating convenient configuration and monitoring.
- Switching Capacity: 40Gbps
- Packet Forwarding Rate: 23.8Mpps
- Power Supply: DC10-58V (redundant power), reverse polarity protection
- Power Consumption: Non-PoE full load <10W; PoE full load <132W
- Dimensions (L×W×H): 181×146×47mm
- Operating Temperature: -40℃~+85℃
- Protection Level: IP40 (aluminum alloy housing)
- Installation: DIN-Rail Mount or Wall Mount
- MTBF: 100,000 hours
1. Layer 2 Features
- Supports 4K VLANs (port-based VLAN, IEEE 802.1Q VLAN, QinQ) for flexible service isolation.
- Compatible with STP/RSTP/MSTP spanning tree protocols and ERPS ring network protocol to eliminate loops.
- Up to 12 link aggregation groups, enhancing link bandwidth and redundancy.
2. Industrial-grade & Transmission Features
- Wide temperature adaptation (-40℃~+85℃) and IP40 protection, adapting to harsh industrial environments.
- Supports 10Kbytes Jumbo Frame and auto-adaptive cross-connect/direct cables.
- Transmission distance: Up to 100m for electrical ports, dependent on SFP module for optical ports (2m~5000m for fiber).
3. Security & QoS
- Rich QoS mechanisms: Priority mapping, SP/WRR queue scheduling, and port/flow-based rate limiting.
- Supports 500 ACLs (IP standard/extended ACL, MAC extended ACL) and storm suppression.
- Comprehensive EMC protection, complying with multiple IEC 61000-4 standards for anti-interference.
4. Management and Maintenance
- Diversified management methods: WEB management, CLI (Console/Telnet), SNMPv1/v2c.
- Convenient maintenance: Supports firmware upgrade, system log, SFP module DDM monitoring, and configuration management.
Core Conclusion： This product is an industrial-grade managed Ethernet switch, featuring 8 Gigabit electrical ports + 8 SFP optical ports, wide operating temperature range, redundant power supply, and rapid ring network recovery. It is suitable for harsh industrial scenarios such as automotive PIS, video surveillance, train control systems, and other industrial applications requiring high reliability. Featured Highlights: 1. 1G Industrial Managed Switch. 2. Support 8×SFP + 8×GbE, 16-port. 3. Support Aluminum alloy housing and IP40 protection class. 4. Supports multiple management modes including CLlSNMP (v1/v2c), and WEB. 5. Support network redundancy withfault self-healing time <20ms 6. Supports dual redundant powersupply(PoE optional) and diverse topologies 7. Support POE power supply.
Learn More

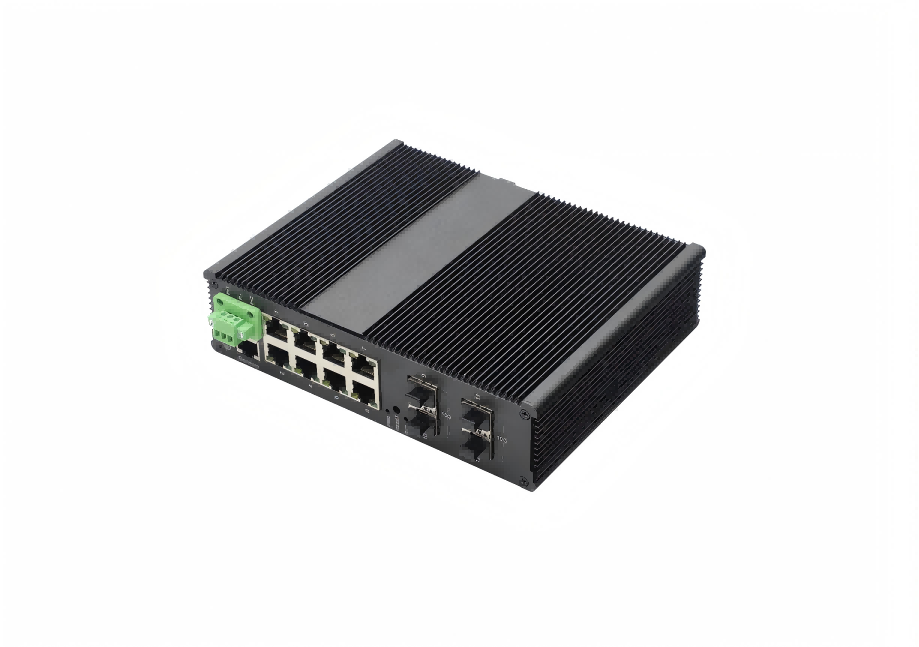

Core Conclusion： This product is an industrial-grade managed Ethernet switch with 10G uplink capability, featuring 8 Gigabit electrical ports + 4 1G/10G SFP+ slots, industrial-grade reliability, and rapid ring network recovery. It is suitable for harsh industrial scenarios such as industrial control systems, video surveillance, and intelligent manufacturing that require high-speed uplink and stable operation. Featured Highlights: 1. 10G Industrial Managed Switch. 2. Support 8×GbE + 4×10G SFP+ + 1Console, 12-port. 3. Support Aluminum alloy housing and IP40 protection class. 4. Supports multiple management modes including CLlSNMP (v1/v2c), and WEB. 5. Support network redundancy withfault self-healing time <20ms 6. Supports dual redundant powersupply(PoE optional) and diverse topologies 7. Support POE power supply.
Learn More
