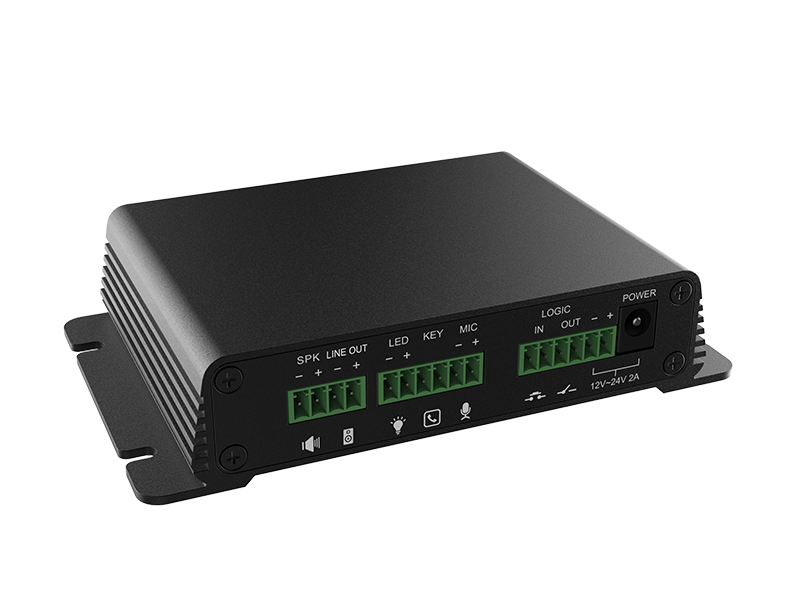

Camera+Broadcast Gateway EQ-DPA
Camera+Broadcast Gateway EQ-DPA
Camera+Broadcast Gateway EQ-DPA

Camera+Broadcast Gateway EQ-DPA

Featured Highlights:

1. supports access to one AI camera.

2. supports traditional speakers, to upgrade the traditional broadcast system.

3. Supports PTZ Camera with 485 protocol.

4. supports USB interface, can be used as video storage

5. Supports mini speakers and microphones to achieve two-way calls with IP phones.

6. Support one-click alarm button for actively initiating voice calls on the camera side.

7. Supports warning lights and incoming calls for warning.

  • Audio and video intercom

2 SIP lines, two SIP servers, fully collaborated, support audio/video hotline function, audio/video auto-answer, delayed answer, configurable, the phone supports media stream (RTP) timeout monitoring, timeout hang-up, remote control via URL /URI, 3 megapixels external HD camera, 1080p, rate above 20/s.



  • Security access control function

A relay output, can control electric locks, police lights, road gates, etc. also supports 30W passive speakers, a short-circuit switch input, can support switches, door magnets and other detection inputs, support for remote alarms.



  • Management Function

Auto Configuration: FTP/TFTP/HTTP/HTTPS/PnP. Configuration via HTTP/HTTPS web, SNMP/TR069. Time Organization Service/Daylight Saving Time, Network Upgrades, System Log, Configuration Backup/Restore.



  • Protocols and Networking

SIP v1(RFC2543),v2(RFC3261);SIP based on TLS, SRTP; RTSP; supports on/off  rport,configurable; TCP/IPv4/UDP;RTP/RTCPRFC2198,1889HTTP/HTTPS/FTP/TFTPARP/RARP/CMP/ NTP/

DNS SRV/ A Query/NATPR Query Primary and Secondary DNS; Private Network Penetration Protocol NAT, STUN, Session Timer 802.1p/q, DSCP/802.1XDHCP/Static/PPPOE

DTMF Mode:In-Band,RFC2833and SIPINFO Phones support local SIPRTP, RTCP port configurations.



  • Audio Functions

HD Audio; Bi-directional Audio Streaming, Wideband Codec:G.722, Narrowband Codec:PCMA,PCMU,G.729, Echo Cancellation for G.168, Voice Activity Detection (VAD), Comfort Noise Generator (CNG), Built- in mini-speaker.

Sound echo cancellation audio output.



  • Physical Specifications

Supports external 1 call button, Metal case, Power supply: DC12-24V1A or 8023af PoE, Requirements: 802.3af PoE Level 3, IEEE 8023af PoE, 2 x 11xRJ4510/100M Ethernet interfaces, Module form factor, supports external camera, speed dial keys , speaker cabinets and so on.

Size:11585*30mm, 1x 100M/10M Ethernet interface, Poe, 1x 100M/10M Ethernet interface for external webcam, 1x relay output; 1x short circuit input interface; 2x volume control buttons; 1x audio output. 1x 30W 4Q passive speaker output ; 1x analog audio output, 1x external audio input, 1x microphone Input interface, 1 TF CARD interface, 1 USB communication interface, 1 controllable external LED interface.



  • Environmental Requirements

Operating Temperature: -20~65C

Placement temperature: -40~70C

Relative Humidity: 10~90
