| Panel Brand | BOE / HKC / Innolux (optional) |
|---|---|
| Product Type | Touch Display All-in-One PC (Android System) |
| Display Size | 21.5 inches (16:9) |
| Display Type | LED LCD Screen |
| Physical Resolution | 1920*1080 |
| Display Color | 8bit, 16.7M |
| Refresh Rate | 60Hz |
| Brightness | 250cd/m² (350cd/m² - 500cd/m² optional) |
| Contrast Ratio | 1000:1 |
| Viewing Angle (Degree) | Wide Viewing Angle |
| Backlight Lifespan | 15,000 hours |
| Housing & Appearance | Body made of plastic |
|---|---|

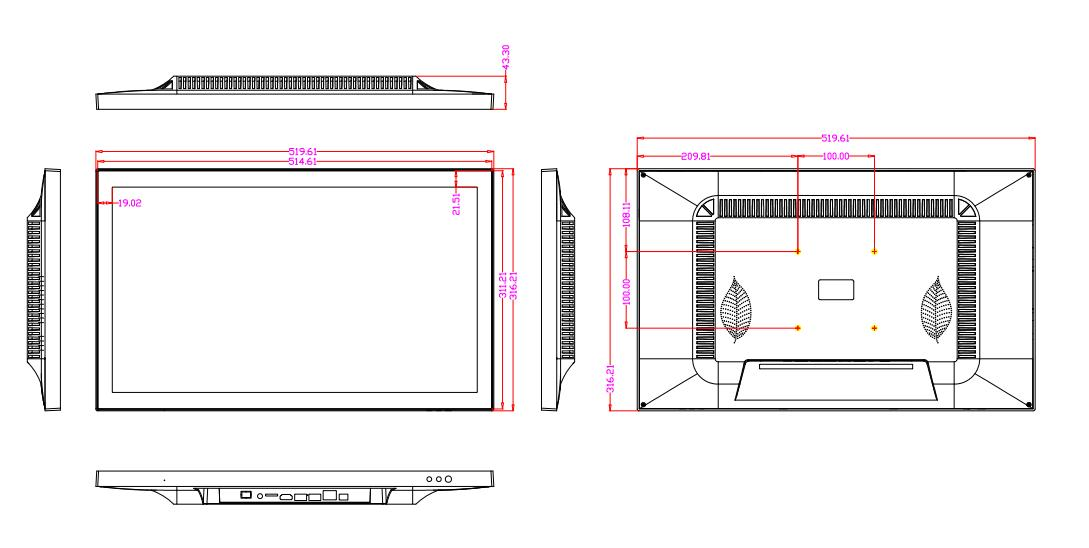

| Overall Dimensions | 519.61mm * 316.21mm * 43.3mm |
| Operating Voltage | 12V |
| Maximum Power Consumption | ≤ 60W |
| Standby Power Consumption | ≤ 2.5W |
| Installation Method | Embedded |
| Speaker Specification | 10W/8Ω × 2 speakers (optional) |
| Communication Module | CAT4 with GPS positioning function (optional) |
| Serial Ports | 2 TTL, 2 RS232, 1 RS485 (optional) |
| Environmental Parameters | Working Place | Indoor |
|---|---|---|
| Operating Temperature | 0°C ~ +50°C | |
| Operating Humidity | 10% - 90% (non-condensing) | |
| Storage Temperature | -10°C - +60°C | |
| Storage Humidity | 10% - 90% (non-condensing) |
| Main Hardware Parameters | Specifications |
|---|---|
| CPU | Quad-core 64-bit Cortex-A55, maximum frequency up to 2.0GHz |
| GPU | ARM G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| NPU | Maximum computing power up to 1TOPS |
| Memory | 2G/4G/8G (optional) |
| Built-in Storage | EMMC 16G/32G/64G/128G/256G (optional) |
| Operating System | Android 11 |
| Playback Modes | Supports loop, scheduled, insert and other playback modes |
| Supported Image Formats | BMP, JPEG, PNG, GIF |
| Power Supply Interface | 1 built-in 2.54MM 6P power input interface and 1 DC jack interface (outer diameter 5.5mm, inner core 2.0mm) |
| LVDS Output | 2 single/double-channel 30PIN DuPont interfaces, directly driving LCD screens of various resolutions at 50/60Hz |
| MIPI Output | 2 4-LIN MIPI screens (40P 0.5MM pitch FPC interface), directly driving 2 MIPI LCD screens |
| EDP Output | 1 2-LIN EDP screen (30P 0.5MM pitch FPC interface), maximum support for 1920*1080 output |
| HDMI Output | 1 Type-A interface, supports 1080P, 2K, 4K output |
| TF Card | Supports 16G/32G/64G/128G (theoretically supports larger capacities as long as they comply with SD3.0 and MMC ver4.51 protocols) |
| CTP Interface | 2 I2C touch screen interfaces, capable of driving two I2C touch screens simultaneously |
| Remote Control & Indicator Light | Supports infrared remote control button operation and device working status indicator |
| Serial Port/Expansion Interface | 6 TTL, 8 GPIO |
| Audio & Video Output | 1 4-wire headphone jack (US standard), 1 dual-channel speaker output interface (supports 8Ω/5W power amplifier for left and right channel output) |
| Audio Input | 1 microphone interface (2PIN pin) |
| Gravity Sensing | Supported, not pasted by default |
| RTC Real-Time Clock | Supported, with scheduled power on/off function |
| USB Interface | 2 USB3.0, 5 built-in USB sockets |
| System Upgrade | Supports local USB upgrade, wireless upgrade, and computer-based upgrade |
| Network Support | 1. Supports 10/100M/1000M adaptive Ethernet 2. Built-in WiFi and Bluetooth; WiFi supports hotspot sharing 3. Expandable 4G Internet access (requires additional USB 4G module) |
| Dimension | 127.5mm * 84.50mm / ±0.5mm, board thickness 1.6mm ±10% |
| Operating Environment | Temperature: 0°C - 80°C (recommended 5°C ~ 35°C), Humidity: 10% ~ 90% (non-condensing) |
| Industrial-Grade Chip | RK3568J operating temperature: -40°C - 85°C |
| Name | Quantity |
|---|---|
| Warranty Card | 1 piece |
| Qualification Certificate | 1 piece |
Integrated & Compact: Combines display and Android system in one unit, no extra host required, boasting a concise appearance. Durable & Safe: Made of sheet metal/plastic with fine spraying; sharp-edged design ensures both sturdiness and safety. Superior Performance: More efficient, safer, and easier to operate compared to traditional computers.
