Equiinet helps INEOS Chemicals: Reusing Cisco Phones & Legacy Analog Phones for Efficient Interconnected Communication Across Factories

Jan 15, 2026

Part 1 - Company Profile

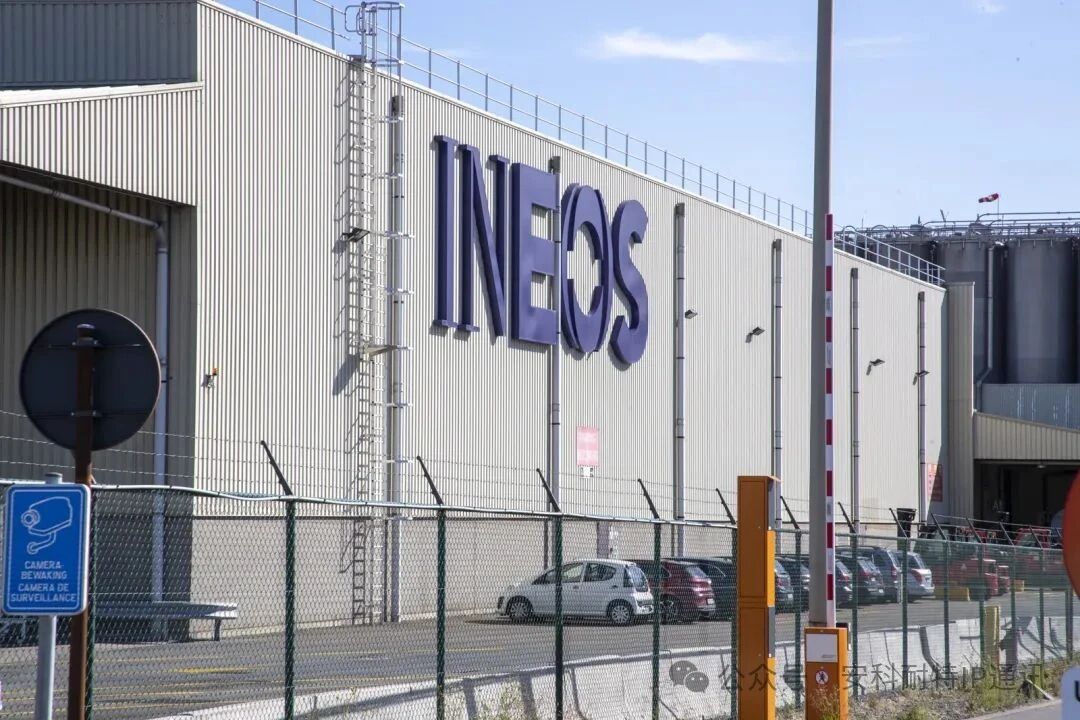

INEOS is a globally renowned petrochemical manufacturer with strong strength. Its business spans 29 countries, boasting 194 production bases, over 26,000 employees, and an annual revenue of up to USD 61 billion. The company comprises 36 independent business segments, covering chemicals, oil, natural gas, and consumer brands. Its chemical operations are integrated into several large business groups, such as INEOS Group, INEOS Styrolution, INOVYN, and INEOS Enterprises.

INEOS Chemicals (Zhuhai) Co., Ltd., a subsidiary of INEOS Group, specializes in the production and sales of Purified Terephthalic Acid (PTA). It also generates electricity using waste heat from the production process and feeds part of the electricity into the external power grid, achieving remarkable results in energy conservation and emission reduction.

Part 2 - Enterprise Requirements & Solutions

Customer Background：

The company’s office area is in the urban area and the factory is in the suburban area, with interconnected internal networks between the two locations.
The existing Cisco telephone system has been decommissioned, but the company intends to reuse 200 Cisco 7965 IP phones and some analog phones.

Requirement 1：The enterprise aims to deploy a feature-rich IP telephone system that supports future expansion and is compatible with other phone brands.

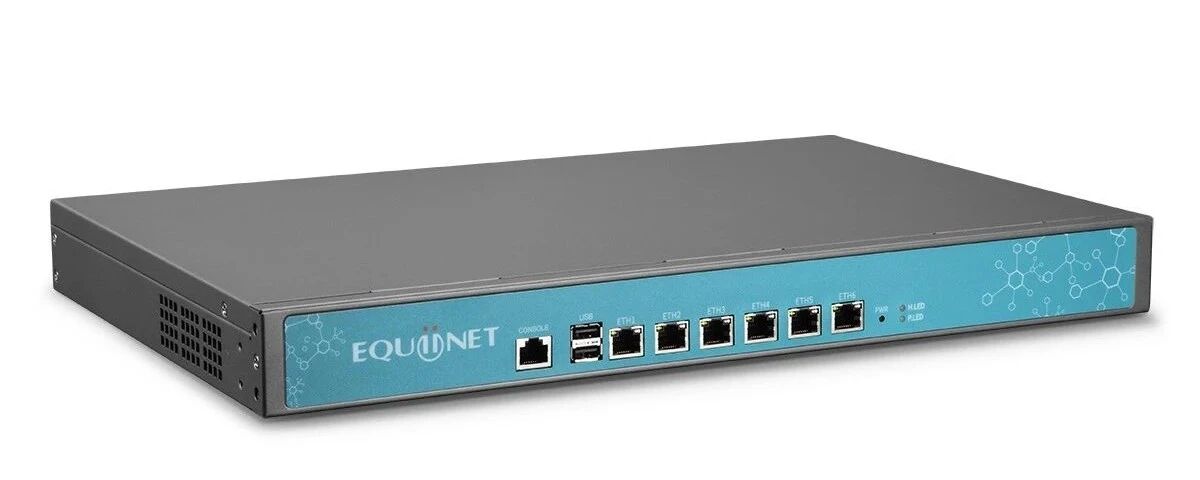

Equiinet Solution：Deployment of the SINA IoT Communication System

（1）Rich Features：Includes call transfer, call forwarding, three-way conferencing, call recording, call logs, and other practical functions to meet diverse daily office communication needs.

（2）Easy Expansion：With a lightweight architecture, the system can be expanded to 1,000 extensions without changing hardware, supporting future phase II and III projects.

（3）Strong Compatibility：Seamlessly integrates with any IP phone supporting the SIP protocol, regardless of brand.

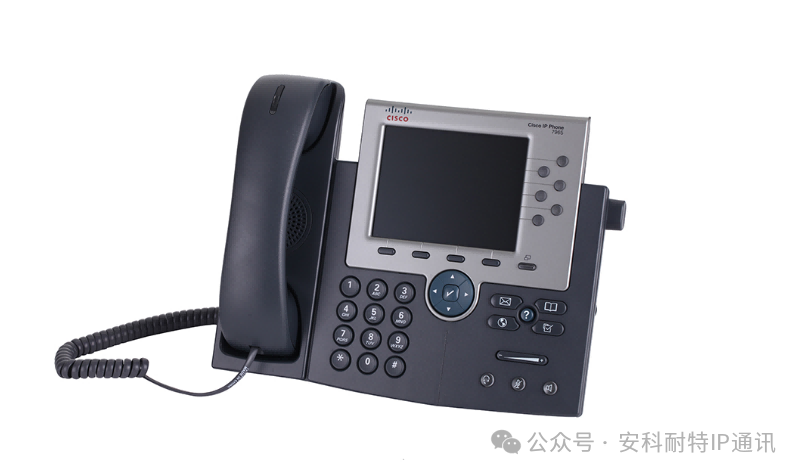

Requirement 2：Reuse 200 existing Cisco 7965 phones on the SINA system to save costs.

Equiinet Solution：By importing and configuring specific files into the Cisco 7965 phones (which cannot be directly registered to the SINA system by default), the team successfully enabled reuse.

All functions—including caller ID, call making/receiving, call transfer, conferencing, and call logs—perform identically to the previous experience.

Requirement 3：Integrate on-site analog phones into the SINA system to maintain the original user experience.

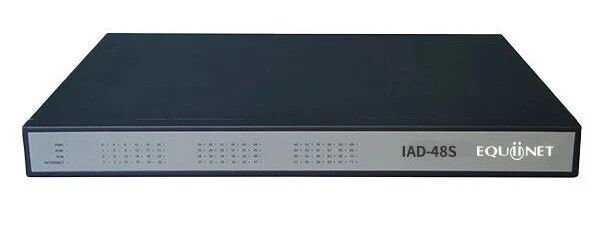

Equiinet Solution：Deployment of FXS Gateways at the Factory

（1）Network Connection：One end of the FXS gateway connects to the network switch and registers to the SINA system via the SIP protocol.
（2）Analog Phone Integration：The other end connects to the existing factory distribution frame (linked to analog phones via multi-pair cables), supporting both RJ45 and RJ21 interfaces for flexible deployment.
（3）Functionality：All analog phones can make and receive calls normally after integration.

Requirement 4：Integrate a 30B+D trunk line into the SINA system and control outbound permissions for specific extensions (e.g., restricting external calls).

Equiinet Solution：

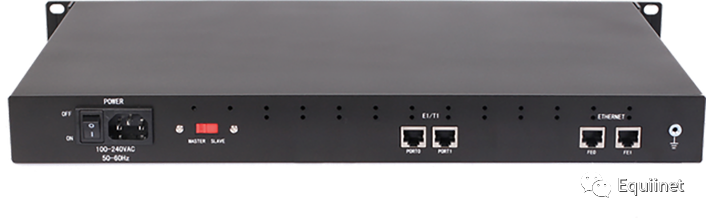

（1）Hardware Deployment：Deploy an E1 gateway in the equipment room, connecting it to the SINA system via IP trunking to enable the 30B+D line.

（2）Permission Configuration：Set up call routes and assign outbound permissions in the SINA system. Restricted extensions can only make internal calls, meeting the enterprise’s management needs.

Part 3 - Network Topology

Part 4 - Solution Highlights

（1）Rich Functions & Expansion Advantages：Covers comprehensive communication features for daily use. Supports free inter-branch communication in future expansions, reducing costs for long-term development.

（2）Strong Compatibility & Cost Savings：Enables reuse of Cisco IP phones and analog phones through configuration adjustments or FXS gateways, significantly cutting equipment costs.
（3）Flexible E1 Gateway Application：Supports 30B+D line integration and offers customized configurations (e.g., direct lines, round-robin lines) to meet diverse communication requirements.

Part.5 -- Equiinet Introduction

Beijing Equiinet Network Technology Co., Ltd. is Consists of a group of highly skilled IP communication experts. At present, it has provided IP communication services for more than 50,000+ enterprises in the world, and is an official Microsoft certified partner with a value -added telecommunication business license.

Keep the complexity to us, leave the simplicity to customer. Provide users with a one-stop Internet of Everything communication solutions. 30~30,000 people of enterprise IP office communication | AI intelligent IVR | cloud communication | Microsoft Teams Voice Direct Routing | command " change voice "Communication | IoT center system that can connect various IoT sensors and realize linked alarms, the program is all-inclusive.

Through the cooperation with agents and system integrators around the world to serve customers. Honesty with loyalty and service is the philosophy of our team. The company is a member of the IT Enterprise Integrity Alliance, and has won the National IT Industry Top 100 Award: Best Digital Solution Provider, Most Innovative IT Product Award. At the same time is the China Information Systems Operation Trade Association (ISOTA), the digital communication products title supplier.
